| 夾緊力kN |
| 扭矩Nm |
HDLM4 |
液壓壓
力MPa |
HDHLM4 |
HDLM6 |
液壓壓
力MPa |
HDHLM6 |
| 14 |
4.6 |
6.9 |
3.4 |
6.8 |
3.4 |
3.9 |
| 27 |
9.5 |
10.3 |
6.4 |
11.2 |
6.9 |
7.1 |
| 41 |
14.0 |
13.8 |
8.5 |
14.9 |
10.3 |
10.4 |
| 54 |
18.0 |
17.2 |
11.3 |
19.2 |
13.8 |
13.9 |
| 68 |
22.2 |
20.7 |
13.8 |
25.6 |
17.2 |
17.6 |
| 81 |
26.1 |
24.1 |
16.5 |
30.5 |
20.7 |
21.1 |
| 95 |
|
27.6 |
18.7 |
33.2 |
24.1 |
24.4 |
|
|
|
31.0 |
21.4 |
27.6 |
28.2 |
|
|
|
|
|
31.0 |
31.6 |
|
液壓排量6.8CC |
|
液壓排量18CC |
|

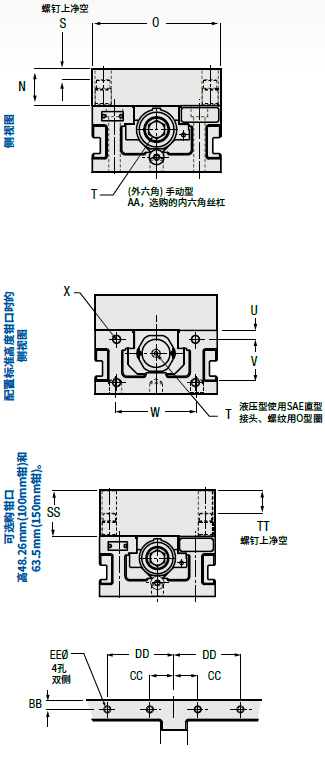

| 參數表 mm(in) |
| 100mm和150mm HDL型普通和液壓鉗 |
|
HDLM4 |
HDHLM4 |
HDLM6 |
HDHLM6 |
| A |
60.325 |
60.325 |
79.375 |
79.375 |
| B |
101.600 |
101.600 |
152.400 |
152.400 |
| C |
415.925 |
415.925 |
533.400 |
533.400 |
| D |
200.025 |
200.025 |
258.877 |
258.877 |
| E |
63.500 |
63.500 |
82.550 |
82.550 |
| F |
418.287 |
418.287 |
539.750 |
539.750 |
| G |
209.144 |
209.144 |
269.875 |
269.875 |
| H |
33.680 |
– |
36.830 |
– |
| J |
9.855 |
– |
21.844 |
– |
| K |
41.275 |
41.275 |
63.500 |
63.500 |
| L |
82.550 |
82.550 |
127.000 |
127.000 |
| M |
101.600 |
101.600 |
127.000 |
127.000 |
| N |
35.560 |
35.560 |
43.891 |
43.891 |
| O |
101.600 |
101.600 |
152.400 |
152.400 |
| P |
75.794 |
75.794 |
101.600 |
101.600 |
| Q |
65.075 |
65.075 |
84.125 |
84.125 |
| R |
20.625 |
20.625 |
24.613 |
24.613 |
| S |
7.722 |
7.722 |
13.259 |
13.259 |
| T |
14.275
外六角 |
(7/16-20
)UNF O型圈口 |
19.050
外六角 |
(7/16-20)
UNF O型圈口 |
| U |
9.525 |
9.525 |
11.125 |
11.125 |
| V |
42.875 |
42.875 |
53.975 |
53.975 |
| W |
63.500 |
63.500 |
98.425 |
98.425 |
| X |
M8 x 1.25 |
M8 x 1.25 |
M10 x 1.5 |
M10 x 1.5 |
| Y |
– |
3.175 |
– |
3.175 |
| Z |
3.048 |
– |
3.962 |
– |
| AA |
11.099
內六角 |
11.900
內六角 |
15.875
內六角 |
15.875
內六角 |
| BB |
9.525 |
9.525 |
11.125 |
11.125 |
| CC |
34.325 |
34.325 |
28.575 |
28.575 |
| DD |
65.100 |
65.100 |
79.375 |
79.375 |
| EE |
M8 x 1.25 |
M8 x 1.25 |
M8 x 1.25 |
M8 x 1.25 |
| FF |
|
|
|
|
| GG |
20.000 |
20.000 |
25.000 |
25.000 |
| HH |
100.000 |
100.000 |
75.000 |
75.000 |
| JJ |
|
|
|
|
| KK |
|
|
|
|
| LL |
100.000 |
100.000 |
175.000 |
175.000 |
| MM |
– |
– |
|
|
| NN |
40.000 |
40.000 |
50.000 |
50.000 |
| OO |
M8 SHCS |
M8 SHCS |
M12 SHCS |
M12 SHCS |
| PP |
– |
– |
– |
– |
| QQ |
– |
– |
– |
– |
| RR |
16.000 |
16.000 |
16.000 |
16.000 |
| SS |
48.260 |
48.260 |
60.960 |
60.960 |
| TT |
20.422 |
20.422 |
30.328 |
30.328 |
| 重量 |
15.42Kgs |
14.96Kgs |
32.21Kgs |
31.75Kgs |
| 重量僅指鉗體，不含鉗口部分 |
HD和HDL的鉗口及基礎板選項請見第40至43頁 |
|
